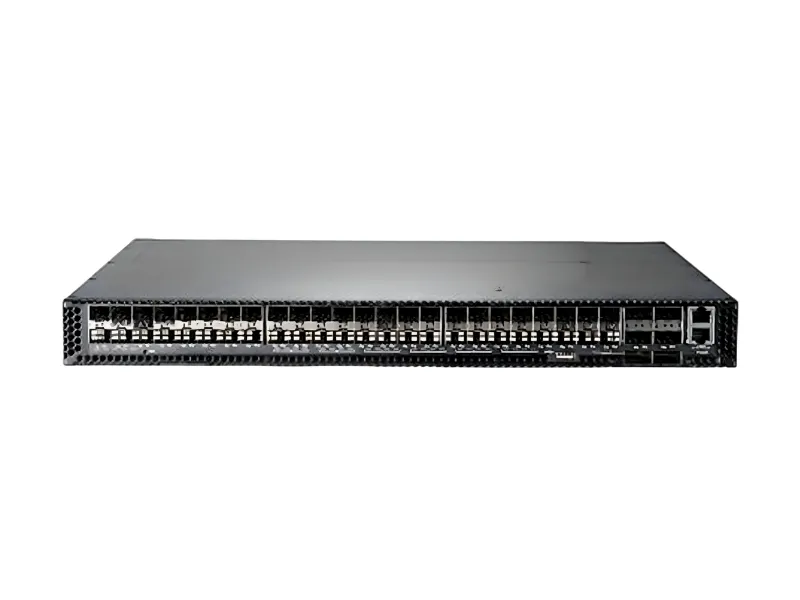

Switch HPE JL315A Altoline 6921 48XGT 6QSFP+ x86 ONIE AC

1,500,000$ ~~2,000,000$~~ -25%

Thiết bị chuyển mạch HPE JL315A Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch chính hãng giá tốt tại Hà Nội

Thiết bị chuyển mạch HPE JL315A Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch

Mô tả sản phẩm

Thiết bị chuyển mạch HPE JL315A dụng cho việc cung cấp kết nối mạng LAN đến các máy tính làm việc và các thiết bị cần kết nối mạng như bộ phát không dây wifi, máy in, máy chủ, IP camera … Dòng switch HPE JL315A tiết kiệm chi phí và rất hiệu quả cho việc cung cấp kết nối mạng, với mức tiêu thụ nguồn điện thấp.

Thiết bị chuyển mạch HPE JL315A cho phép dễ dàng quản lý ngay cả bởi người dùng không biết kỹ thuật thông qua giao diện Wed trực quan, hỗ trợ HTTP và HTTP Secure (HTTPS)

Thiết bị chuyển mạch HPE JL315A được thiết kế theo chuẩn EIA 1U phù hợp với tất cả các loại tủ rack hoặc gắn trên tường.

Các loại Module quang HPE được sử dụng cho switch HPE JL315A:

JG661A HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver

JG325B HPE X140 40G QSFP+ MPO SR4 Transceiver

JG709A HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver

JD119B HPE X120 1G SFP LC LX Transceiver

JD118B HPE X120 1G SFP LC SX Transceiver

JD089B HPE X120 1G SFP RJ45 T Transceiver

JD062A HPE X120 1G SFP LC LH40 1550nm Transceiver

JD092B HPE X130 10G SFP+ LC SR Transceiver

JD094B HPE X130 10G SFP+ LC LR Transceiver

JG915A HPE X130 10G SFP+ LC LH 80km Transceiver

Các loại cable DAC HPE - Direct attack copper sử dụng cho switch HPE JL315A:

JG326A HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG327A HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG328A HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG329A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG330A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG331A HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JD095C HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD096C HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD097C HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JG081C HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JC784C HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable

Quý khách có thể tham khảo thêm các dòng switch HPE Altoline 6921 Switch Series:

JL317A HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch

JL318A HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front Switch

JL315A HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Front-to-Back Switch

JL316A HPE Altoline 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front Switch

I/O ports and slots	48 1/10GBASE-T ports 6 QSFP+ 40GbE ports
Additional ports and slots	1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 USB 2.0
Power supplies	2 power supply slots 1 minimum power supply required includes: 2 x PSUs
Fan tray	5 fan tray slots Switch comes with five (5) fan trays (port to power airflow)
Physical characteristics	Dimensions: 17.4(w) x 18.6(d) x 1.71(h) in (44.2 x 47.24 x 4.34 cm) Weight: 18.74 lb (8.5 kg)
Memory and processor	Intel Atom C2538 quad-core x86 processor @ 2.4 GHz, 8 GB DDR3 SDRAM; Packet buffer size: 12 MB, 8 GB NAND flash
Mounting and enclosure	wall, desktop and under table mounting
Performance	40 Gbps Latency > .6 µs ThrougHPEut up to 1 Bpps Switching capacity: 1440 Gbps Routing table size 64000 entries (IPv4), 20000 entries (IPv6) MAC address table size 320000 entries
Environment	Operating temperature: 32°F to 104°F (0°C to 40°C) Operating relative humidity: 10% to 90%, noncondensing Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity:5% to 95% @ 140°F (60°C) Acoustic: Low-speed fan: 59.8 dB, High-speed fan: 74.4 dB
Electrical characteristics	Frequency: 50/60 Hz Maximum heat dissipation 955/1689 BTU/hr (1007.53/1781.9 kJ/hr) Voltage: 90 - 264 VAC, rated -40 to -75 VDC, rated (depending on power supply chosen) Maximum power rating: 282 W Idle power: 267 W Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety	cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A: Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL
Emissions	FCC part 15 Class A; EN 55022 Class A; VCCI; EN 60950-1
Management	Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP
